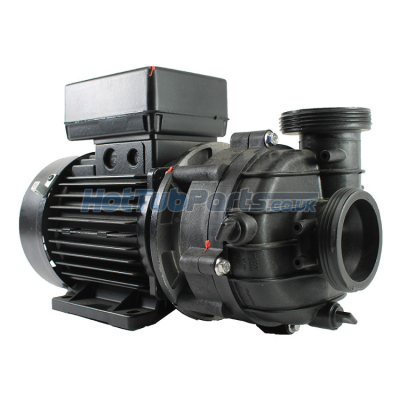

2HP 1 Speed Durajet Sta-Rite Pump
Genuine modern replacement 2hp 1 speed Balboa Durajet pump designed specifically for use with hot tubs and spas. This Durajet pump also known as the Cascades is manufactured by Balboa. Balboa has many pump divisions and owns Pentair who manufacture the Sta-Rite range of pumps. This new replacement pump from Balboa uses a modern Balboa motor which can also be found on their Niagara model, this is then added to a Pentair Sta-Rite wet end to complete the built-up hot tub pump.
Over 5 years ago or so the original Durajet was discontinued and only the wet ends were available. Now with this new replacement model, finally the correct direct replacement spa pump can be fitted. This Durajet model is a very efficient hot tub pump with excellent power performance and benefits from having a large heavy duty 56 frame sized motor.
This Balboa/Sta-Rite Durajet pump is a direct replacement for the original Sta-Rite Durajet hot tub pump manufactured by Pentair which is commonly found on Dimension One Spas, Hotsprings & Master Spas.
Sta-Rite Durajet Pump Overview
- This is a 1-speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub.
- Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the wet end to the motor.
- Wiring - This replacement Durajet spa pump is NOT supplied with a new cable so you will need to swap over from your old existing pump. You will have four wires, two of them are live for high and low speeds (Red, Brown or Black) so make a note when installing. Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.
Balboa Pump Specifications
- Manufacturer - Balboa Water Group/Pentair
- Part Number - PW-DJ201
- Model - Durajet ( Cascades)
- Type of Product - Hot Tub/Spa Pump
- Number of Speeds - 1 (high speed)
- Motor & Wet End Frame Size - 56 Frame
- Horse Power - Motor 2HP, 2HP wet end
- Amps Low/High - 8.7
- RPM Low/High - 2800
- Hz - 50
- Dimensions (MM) - Length: 410, Height: 245, Width: 200
We Are Here To Help!
It can be a bit confusing choosing your new replacement Balboa pump as model details are not always written on them. The quickest way is to simply send us some images of the Hot Tub pump you are replacing though our Contact us page and let us do the work for you.
