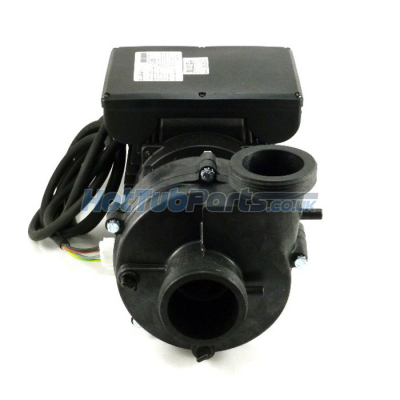

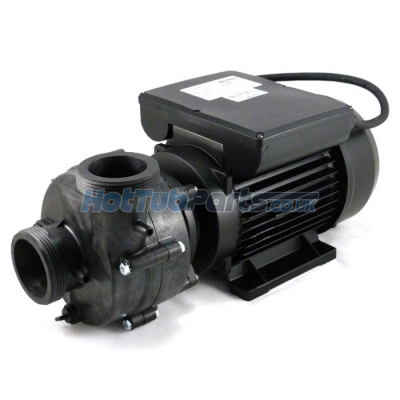

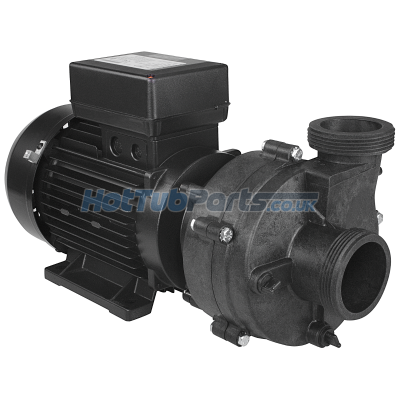

2HP 1 Speed Niagara Balboa Pump
Genuine 2hp 1 speed Balboa Niagara pump designed specifically for use with hot tubs and spas. The Niagara model is a very efficient modern Balboa hot tub pump with excellent power performance and boasts from having a large heavy duty 56 frame sized motor. It can be easily recognised from its motor design and having a saddle bag style electrical box that hangs over each side of the motor with its start capacitors inside.
This 2hp Niagara pump is a replacement for Ultimax pumps by Vico & Sta-Rite, Sta-Rite Durajet hot tub pump which is commonly found on Dimension One Spas & Master Spas.
Balboa Niagara Pump Overview
- This is a 1-speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub.
- Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four 1/4" bolts that attach the wet end to the motor.
- Wiring - This replacement Niagara spa pump is supplied with a new cable & AMP plug but you may need to swap over from your old existing pump as spa control connections can vary. You will have three wires, live for the high speed (Red, Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.
Balboa Spa Pump Specifications
- Manufacturer - Balboa Water Group
- Part Number - 1023321
- Model - Niagara (Ultimax)
- Type of Product - Hot Tub/Spa Pump
- Number of Speeds - 1 (High Speed)
- Motor & Wet End Frame Size - 56 Frame
- Horse Power - Motor 2HP, 2HP wet end
- Amps Low/High - 9.0
- RPM Low/High - 2875
- Hz - 50
- Dimensions (MM) - Length: 460, Height: 204, Width (including electrical box): 204
We Are Here To Help!
It can be a bit confusing choosing your new replacement Balboa pump as model details are not always written on them. The quickest way is to simply send us some images of the Balboa Spa pump you are replacing though our Contact us page and let us do the work for you.
Your order will generally be dispatched on the same working day as receipt of payment is received before 2pm. We ship via DPD with tracking.
When you place an order, it's often better to provide us with your mobile telephone number instead of your landline number. This is so we can give it to our courier, who will then text you your exact time and date of delivery, even down to the hour it will be delivered.
Please be aware: All the delivery prices listed below are inclusive of VAT to the UK. All other countries will not be charged VAT. *All spa covers and chemicals can only be shipped to UK mainland, please call for a shipping quote for all other delivery destinations.*
SPA COVERS: Unfortunately due to the size of spa covers and the costs to send them they are not included within the free shipping method over £100. Shipping covers are charged at £24.00 with a 1-2 day service when ready, stock covers take around 10-14 days from order to be shipped, custom covers 8-10 weeks from date of order.
