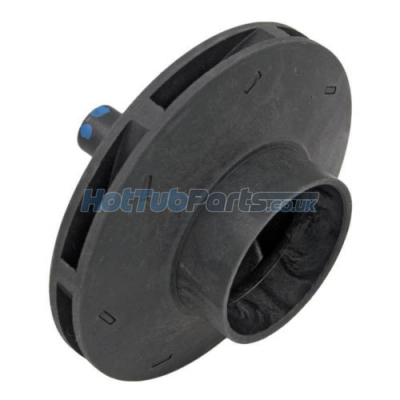

2hp Aqua-flo Flomaster XP2 Pump Impeller
Genuine replacement 2hp impeller for the Aqua-flo Flomaster XP2 pump wet ends designed specifically for use with Hot Tubs & Spas. These 2hp impellers will ONLY fit the XP2 pump wet ends and you should fit the same horsepower equivalent. The horsepower rating can be identified by the vein gap distance.
This type of Aqua-flo Flomaster XP2 Impeller can be identified by having two blue dots marked on the side of the shaft end.
Vein Gap Distance - To aid in matching up the correct impeller HP measure the vein gap distance, this is the distance between the front and rear plates of the impeller. Compare with the specifications of this Aqua-flo impeller below.
Product Specifications
- Manufacturer - Aqua-flo
- Part Number - 91694200
- Type of Product - Pump Wet End Impeller
- Impeller HP - 2hp
- Vein Gap Distance - 6mm
- Intake Outer Diameter - 53mm
- Diameter - 110mm
- Length - 80mm
- Colour Dot ID - Blue/Blue
Top Tips
We recommend if you are replacing the impeller inside your hot tub pump wet end to also replace the shaft seal kit that seals the rear of the impeller shaft to the wet end rear volute. This will avoid having to strip down your pump again to replace this seal kit in the near future. Please see the related products below for a replacement seal kit for your Aqua-flo pump wet end.
