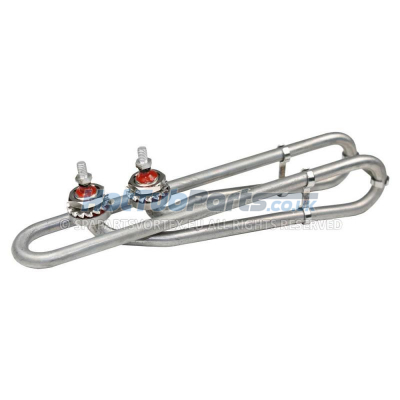

3.0kw LX H30-R1, R2, R3 Spa Heater Element
Genuine replacement Chinese Whirlpool LX H30 3kw heating element which is specifically used on Chinese manufactured hot tubs, spas and swim spas.
LX Heater Element Overview
- This Chinese heater element is a direct replacement for the LX H30-R1 (Straight), H30-R2 (L-Shaped) & H30-R3 (T-Shaped) heater assemblies with 1.5-inch connections. Does not fit the 2-inch H30-R1 heaters.
- Supplied with new Viton element to heater tube O-rings, 2x element/tube fixing nuts and 2x replacement terminal lock nuts.
LX Heater Element Specifications
- Manufacturer: LX
- Part Number: HTP1331
- Type of Product: Spa or Hot Tub heater element
- Kilowatt Rating: 3.0kW
- Volts/Hz: 230/50
- Amps: 11.6
- Element Material: Incoloy
- Length: 170mm
- Height: 50mm
- Distance of Terminals: 25mm
Element Fitting & Removal Guide
Once you have the heater assembly removed from the spa undo the 2x element/tube securing nuts. Push down the two heater terminals and slide out the old element (can be tight but will come out). Slide in the new heater element whilst making sure that you do not bend the terminals too much and ensure the Viton O-rings are seated properly in the recess of each terminal beforehand. Pop up the two terminals through the tube and secure in place with the 2x element/tube fixing nuts.
NOTE: When you have the heater assembly back in the spa control box and you tighten the two heater terminal power wire connections with lock nuts do not allow them to get twisted otherwise the element will be damaged and will not work. Hold the base of the terminal whilst tightening the 2x lock nuts to prevent this. Element failure from twisted terminals will void any manufacturers warranty. We advise replacing any heater union gaskets when you fit a new heating element.
