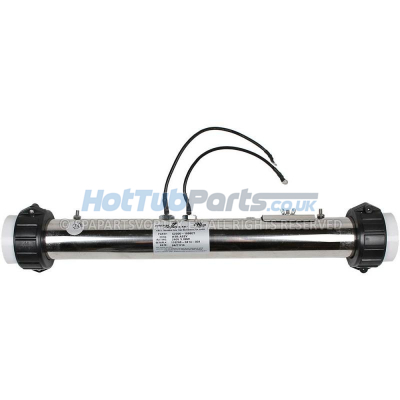

3kw Vita Spa Flow Thru Heater - C2300-0010ET
High-quality replacement 3kW Vita Spa Flow Thru heater C2300-0010ET used specifically on Vita hot tubs and spas. This Vita Spa heater has pre-wired power terminal wires for simple installation to the spa control box and prevents any damage to the terminals when installing. This heater has been manufactured by others such as RMF, Thermcore & Aquatemp in the past and now this is the direct replacement.
Direct modern replacement for the older 3kW Vita Spa heater C2300-1008ET and 4.5kw version C2450-1008ET.
The following items are included with this complete heater assembly C2300-0010ET:
- 2x 2-inch heater gaskets
- 2x 2-inch split union nut collars & tailpieces
- 2x Mounting stud and 3/8" fixing nuts
- Pre-wired heater terminals
- External Hi-Limit sensor pouch
Spa Heater Overview
- This heater can only be fitted to Vita Spa metal control boxes.
- The Hi-Limit sensor is secured within an external pouch on the heater tube.
- Supplied without pressure switch and is sold separately, this is used to determine how much flow is passing through the heater tube and prevents heater failure.
- Found on older spa models from Vita Spas.
Spa Heater Specifications
- Manufacturer - Therm Products
- Part Number - C2300-0010ET (replaces 3kw C2300-1008ET and 4.5kw version C2450-1008ET)
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3kW
- Element Material - Incoloy
- Flow Detection - Teckmark Pressure switch 3902
- Sensor Type - Separate Hi-Limit and temperature sensors
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female (60mm ID)
- Length: 450mm
- Tube Diameter: 60mm
- Distance of Terminals: 31.75mm
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
