5hp 56 Frame (2.5x2) Waterway Wet End

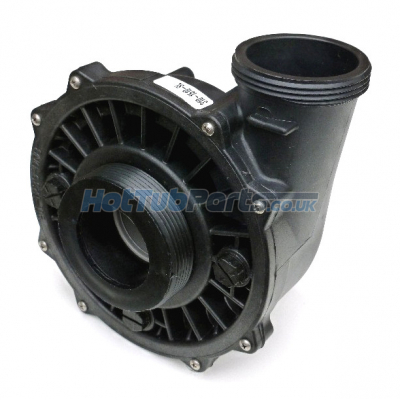

5HP 56 Frame Waterway Executive Pump Wet End (2.5x2)

Genuine direct replacement Waterway 56 Frame pump wet end with an internal 5hp rated impeller. This is the less common model that has a larger 2.5-inch inlet and 2-inch outlet plumbing union connections. 2-inch and 2.5- inch are just plumbing terms, the diameters of the threaded connections are 78mm x 93mm.

This type of Waterway wet end is found on 2.5hp and 3hp Waterway Executive hot tub pumps here in the UK & Europe.

Complete pumps this wet end is used on PF-25-2N22X25, PF-30-1N22X25.

This complete Waterway wet end includes the following items:

• Impeller - 5hp
• Faceplate with 3 bleed screws
• Housing (Rear Volute)
• Ceramic mechanical shaft seal
• All associated internal O' Rings

Pump Wet End Overview

• Wet End Rotation - All pump wet ends can be installed onto pump motors in three positions, 12 O'clock, 3 O'clock or 9 O'clock easily so that they can attach to your spas plumbing unions.
• Side Discharge - This means the inlet (suction) and outlet (Discharge) are offset from one another. When you look directly at the face of the wet end you will see that the outlet is positioned off to one side in comparison to the inlet and not directly in-line.
• Larger Suction (inlet) - This is the less common Waterway wet end that has the larger 2.5" suction on the faceplate.
• Fitment - Wet end is attached to an EMG motor by four small 5/16" bolts. Sold separately.
• These 5hp 56 Frame Waterway wet ends can be bolted onto any 56 frame motors used with Waterway pumps. Will fit motors made by brands such as EMG, EME, AO Smith, Franklin Electric, Century Laser, US Motors & Emerson. Does NOT fit Chinese manufactured motors from LX pumps.

Pump Wet End Specifications

• Manufacturer - Waterway Plastics
• Part Number - 310-1510
• Type of Product - Spa Pump Wet End
• Wet End Frame Size - 56 Frame
• Wet End Type - Side Discharge
• Wet End Horse Power - 5HP
• Union Size (Inlet) - 2.5 inches (93mm Thread OD)
• Union Size (Outlet) - 2 inches (78mm Thread OD)
• Dimensions (MM) - Height: 230, Width: 200

How do I know if my hot tub pump has a 48 Frame or 56 Frame Wet end?

Firstly dismantle your old hot tub pump by removing the four bolts that attach the wet end to the motor. At the rear of the motor, you will have the rear end of the motor shaft that runs all the way through the motor and threads onto the impeller inside the wet end. This shaft end will have a large flat slot for a screwdriver to go onto, simply get another screwdriver and trap the impeller inside the wet end and then unthread the motor shaft from the impeller. You will now have the wet end removed from the motor and you can work out if you have a 48 frame or 56 frame wet end.

48 Frame Wet Ends

There is only one type of 48 frame sized wet end and they will fit all 48 frame pump motors from EMG, Franklin Electric, US Motors, Century Laser, AO Smith and Emerson. Measure diagonally the centres of two of the four bolt studs that attached the motor to the wet end, this measurement will be 130mm.

56 Frame Wet Ends - 6.3"

The modern 6.3" 56 frame motors will fit all modern day 56 frame pump motors. You will very rarely find a smooth bodied 56 frame USA motor fitted on spas in Europe so it will be more likely be an Italian EMG or EME motor associated with a Waterway pump or Aqua-flo Pump. Measure diagonally the centres of two of the four bolt holes that attached the motor to the wet end, this measurement will be 147mm.

56 Frame Wet Ends - 6.1"

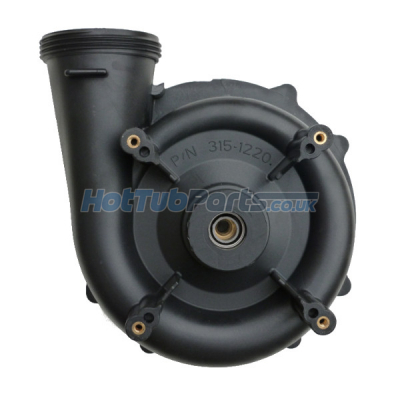

These 56 frame 6.1" wet ends also known as (Euro Legs) are an old size now and the motors are no longer manufactured, you will need to replace your complete hot tub pump really if your motor is showing signs of age and wear. The 6.1" wet ends are really only found on old Aqua-flo XP2 hot tub pumps fitted to spa brands like Tiger River & Hot Springs. These wet ends are NOT measured diagonally, they are measured side to side and the centres of two bolt holes that attached the motor to the wet end are 102mm. The 6.1" XP2 wet ends can be easily identified as they have a part number of 92770715 stamped into one of the four support legs on the rear of the wet end.

LX Pump Wet Ends

LX pump wet ends will only fit LX pumps, for example, an LP300/WP300 wet end will only fit an LP300/WP300 LX Hot Tub pump.

We Are Here To Help!

It can be a bit confusing choosing your new pump wet end as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete hot tub pump you need the replacement wet end for through our Contact us page and let us do the work for you.
