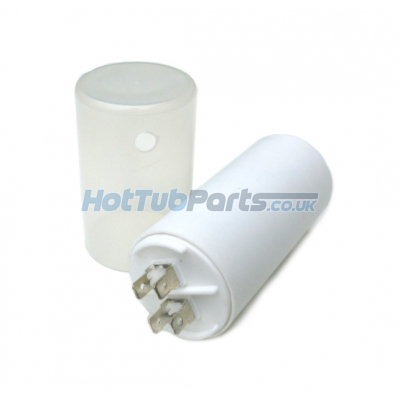

5uF Hot Tub Pump Capacitor
High-quality replacement 5uF start/run capacitor for pump motors used on Hot Tubs & Spas. Our 5uF hot tub pump capacitors are designed to fit the electrical housing on most hot tub pump motors. They include a mounting stud, nut and end cap so they can be mounted externally to the motor if required, these can be also cut off to fit within a limited space.
This capacitor can be used on the Aqua-flo Circ-Master Hp and CP models.
Connections: These 5uF capacitors have four male spade terminal connections but in most cases, you will only require to use two of them. It does not matter which way round you wire these but make a note that there is a moulded dividing line between a pair of terminals and you will need to attach your two wires either side of this line.
Warning: Please do not attempt to install this capacitor to your pump when the pump is still running as they run at high voltage and can cause an electric shock and possible injury.
Product Specifications
- Diameter: 35mm
- Length: 80mm (With End Cap),60mm (No End Cap)
- Volts - 450VAC
- Hz - 50/60
- Rating uF/MFD - 5
We Are Here To Help!
It can be a bit confusing choosing the correct hot tub parts for your hot tub pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete hot tub pump you need the replacement parts for through our Contact us page and let us do the work for you.
Your order will generally be dispatched on the same working day as receipt of payment is received before 2pm. We ship via DPD with tracking.
When you place an order, it's often better to provide us with your mobile telephone number instead of your landline number. This is so we can give it to our courier, who will then text you your exact time and date of delivery, even down to the hour it will be delivered.
Please be aware: All the delivery prices listed below are inclusive of VAT to the UK. All other countries will not be charged VAT. *All spa covers and chemicals can only be shipped to UK mainland, please call for a shipping quote for all other delivery destinations.*
SPA COVERS: Unfortunately due to the size of spa covers and the costs to send them they are not included within the free shipping method over £100. Shipping covers are charged at £24.00 with a 1-2 day service when ready, stock covers take around 10-14 days from order to be shipped, custom covers 8-10 weeks from date of order.
