Arctic 3.6kW Curved Tee Heater

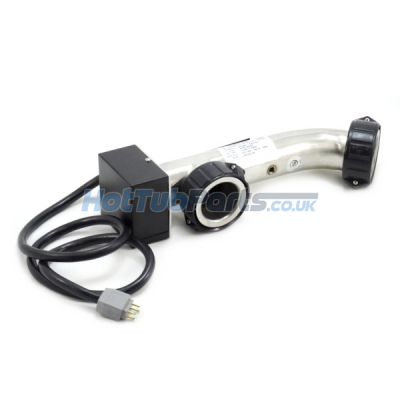

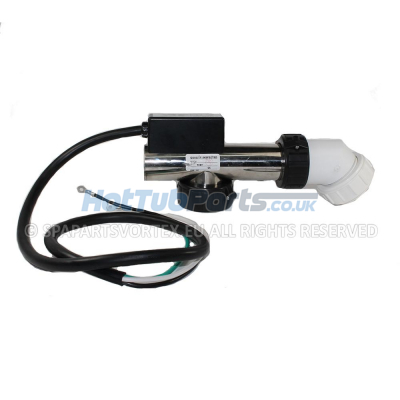

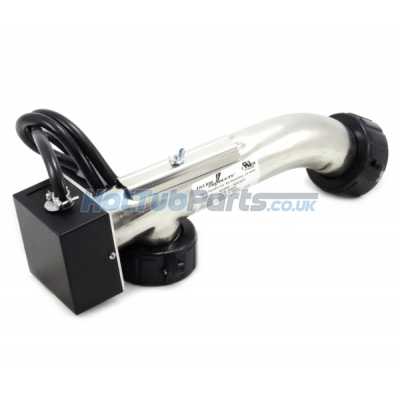

A very distinctive 3.6kw curved tee spa heater assembly A2360-5251ET found on many Arctic models in the past. The original full-length stainless steel heater assembly (Pic 2) manufactured by RMF/Aquatemp and then by Therm Products was discontinued in 2018. This new direct replacement from HydroQuip has a shorter stainless tube but has a 45-degree union section added to it to make up the same length as the original so no plumbing modifications are required to fit this heater to your spa.
NOTE: This new heater does not have the rubber 5-pin J&J plug on the end of the power cord it has pre-wired ring terminals on the end of the cables. Simply run the power cable through into the spa control box and wire directly onto the PCB heater terminal connections. For flow detection a pressure switch is required and NOT supplied with heater, the replacement can be purchased HERE or below in the related products.
The following items are included with this complete curved Arctic heater assembly A2360-5251ET:
- 2x 2-inch heater gaskets
- 2x 2-inch split union nut collars
- 1x 2-inch 45 Elbow union tailpiece
- Pre-wired heater terminals
- External Hi-Limit sensor pouch
Spa Heater Overview
- This heater can only be fitted to Arctic/Gecko MSPA MP control boxes.
- The Hi-Limit sensor is secured within an external pouch on the heater tube.
- Supplied without pressure switch and is sold separately, this is used to determine how much flow is passing through the heater tube and prevents heater failure.
Spa Heater Specifications
- Manufacturer - HydroQuip
- Part Number - A2360-5251ET (replaces others).
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3.6kW
- Element Material - Incoloy
- Flow Detection - Teckmark Pressure switch 3902
- Sensor Type - Separate Hi-Limit and temperature sensors
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female (60mm ID)
- Length: 385mm
- Length Inc Unions: 410mm
- Tube Internal Diameter: 55mm
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
