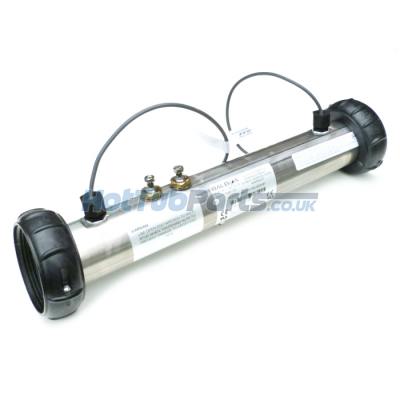

Balboa 2kw M7 Heater - 58063 (Metal Box Fit)
Official high-quality replacement 2.0kW Balboa spa heater with M7 sensors used specifically on hot tubs and spas. This particular 2kw M7 model has the longer 24-inch sensors and has anti-vibration strips at each end of the heater and only used with Balboa metal boxed M7 spa control systems. The vibration strips prevent rattling noises between the heater tube and the metal control box itself.
The following items are included with this complete Balboa 58063 spa heater assembly:
- 2x 2-inch heater gaskets
- 2x Balboa 24-inch M7 sensors
- 2x 2-inch plumbing union tailpieces
Balboa Heater Overview
- Heater can be fitted to control boxes such as Balboa M3 TUV, Elite, Value 5 M7, 2005 LE, Spaform SF100, SF273, GL2000, GL8000 etc.
- Patented Balboa M7 sensors, one at each end of the heater used to monitor temperature and flow rate within the heater tube.
- Found on older spa models from brands such as Spaform, Mountain Springs, Hydrospa, Aegean, Master Spas, Catalina, Canadian Spa and many others.
Balboa Heater Specifications
- Manufacturer - Balboa Water Group
- Part Number - 58063 (replaces many other old part numbers)
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 2.0kW
- Element Material - Incoloy
- Flow Detection - 2x 24" M7 sensors
- Sensor Type - M7 Sensors
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female socket (60mm ID)
- Length: 380mm,
- Length Inc Union Tails: 495mm,
- Diameter: 60mm
- Distance of Terminals: 31.75mm
Heater Fitting & Removal Guide
This M7 Balboa heater is usually mounted on the bottom of the spa control box, you can remove this heater without the removal of the control box. Do this by undoing the two large plumbing union collars first and if needed unscrew the two screws from the split heater collars and remove them completely to give you more space. Disconnect the two copper power terminal straps by removing the two 3/8" nuts and gently bend up the copper straps away from the terminals. The heater tube itself is held into the control box by two aluminium mounting brackets, remove these by unbolting the four 5/16 bolts that are secure the brackets to the control box. Unplug the two M7 sensors from the printed circuit board by pushing the small tab in and unclipping from the PCB. Remove the heater from the control box and reinstall in the same order.
Take care when tightening the two heater power wires onto the new heater terminals, use a 1/4 inch spanner and hold the base of the terminal whilst tightening the 3/8 inch nuts up to prevent the terminals being twisted. New gaskets are supplied with the new heater so replace and fit these to your heater union connections.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
