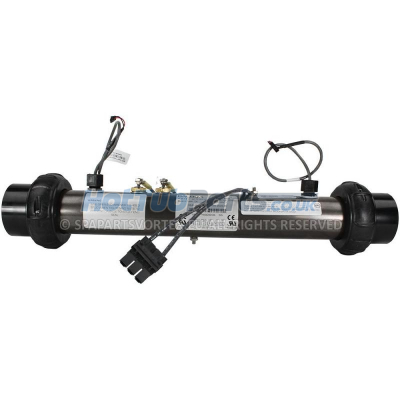

Balboa 2kw M7 Heater BP Series (Plug n Click)
Official high-quality replacement BP series 2.0kW Balboa spa heater with M7 sensors used specifically on hot tubs and spas. This particular modern 2kw M7 plug n click model the heater terminals are pre-wired with a connector plug to plug the heater directly onto the PCB. This heater is used mainly on Balboa BP series spa controls such as the BP601 and BP2100 but can also be found on some modern GS523DZ systems.
The following items are included with this complete Balboa 58200 spa heater assembly:
- 2x 2-inch heater gaskets
- 2x studs with 3/8" mounting nuts
- Pre-wired plug n' click connector
- 2x Balboa 12-inch M7 sensors
- 2x 2-inch plumbing union tailpieces
Balboa Heater Overview
- Stud mounted, Heater can be fitted only to plastic control boxes, Balboa BP601 and BP2100
- Patented Balboa M7 sensors, one at each end of the heater used to monitor temperature and flow rate within the heater tube.
Balboa Heater Specifications
- Manufacturer - Balboa Water Group
- Part Number - 58200 (replaces many other part numbers)
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 2.0kW
- Element Material - Incoloy 800
- Flow Detection - 2x 12" M7 sensors
- Sensor Type - M7 Sensors
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female socket (60mm ID)
- Length: 380mm,
- Length Inc Union Tails: 495mm,
- Diameter: 60mm
- Distance of Terminals: 31.75mm
Heater Fitting & Removal Guide

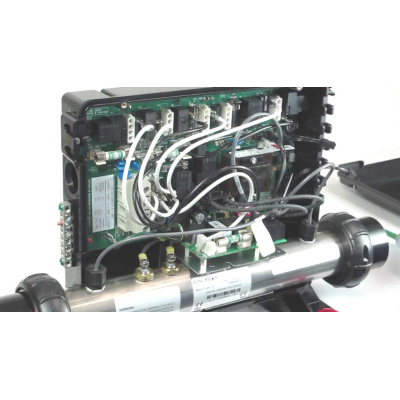

This M7 Balboa heater is mounted within the bottom of the spa control box, you can remove this heater without the removal of the control box. Do this by undoing the two large plumbing union collars first and if needed unscrew the two screws from the split heater collars and remove them completely to give you more space. Disconnect the power to the heater from the PCB using the new black plug n' click connector. The heater tube itself is held into the plastic control box by two 3/8" nuts, one above and one below the centre of the heater tube. Loosen the nuts and unplug the two M7 sensors from the printed circuit board by pushing the small tab in and unclipping from the PCB. Remove the heater from the control box and reinstall in the same order. See fitting video in the product image gallery showing above steps.
New gaskets are supplied with the new heater so replace and fit these to your heater union connections.
