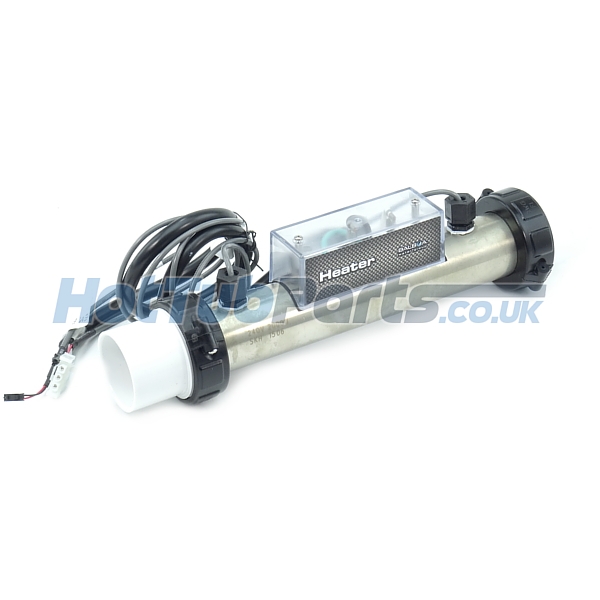

Balboa 2kw New GS100 M7 Heater - 58201
Official high-quality replacement 2.0kW remote GS100 M7 Balboa heater used specifically on hot tubs and spas. This is the newer 10-inch model which replaces the discontinued 5.5-inch model which was used in conjunction with the old metal boxed GS100. Usually found on plug and play spas as the 2kw element only draws between 8-8.5 amps, thus keeping a spa running below 13 amps when heating.
The following items are included with this complete Balboa 58201 spa heater assembly:
- 2x 1.5-inch heater gaskets
- 2x Balboa 24-inch M7 sensors
- 1x Power cord with 3-pin Amp plug
- 2x 1.5-inch plumbing union tailpieces
Balboa Heater Overview
- Remote heater is used specifically with the newer plastic Balboa GS100 control box and plugs directly onto the PCB with a 3 pin amp plug connector.
- Patented Balboa M7 sensors, one at each end of the heater used to monitor temperature and flow rate within the heater tube.
- Found on many spa brands such as Dream Maker, Passion Spas, Chinese manufactured spas, Wellis Spas, Roto Spas and many others.
- This heater is also available in a 15-inch 2kW and 3kW version.
Balboa Heater Specifications
- Manufacturer - Balboa Water Group
- Part Number - 58201 (replaces other part numbers)
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 2.0kW
- Element Material - Incoloy 800
- Flow Detection - 2x 24" M7 sensors
- Sensor Type - M7 Sensors
- Plumbing Union Size - 1.5 inches (63mm thread OD)
- Pipework Connection Size - 1.5 Inch female socket (48.5mm ID)
- Length: 260mm,
- Length Inc Union Tails: 375mm,
- Diameter: 50mm
- Distance of Terminals: 30mm
Heater Fitting & Removal Guide
A very simple heater to replace. Loosen the two heater union collars by hand or with a wrench and if necessary the collars can be split into two and removed completely by unscrewing the two screws on the collar. Unplug the 3-pin amp plug power cable and the two m7 sensors from the GS100 control box printed circuit board by pushing the small tab in and unclipping from the PCB. Remove the heater completely and reinstall in the same order. New gaskets are supplied with the new heater so replace and fit these to your heater union connections.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
