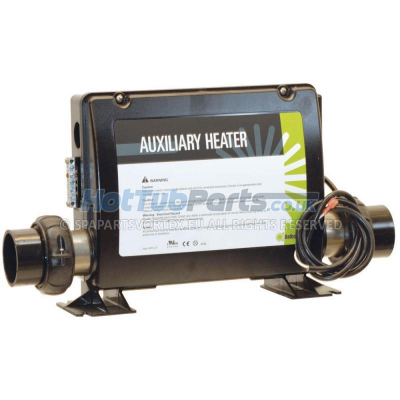

Balboa 3kw Auxiliary-Slave Heater - 58133
Genuine replacement Balboa 3kW Auxiliary slave heater specifically designed for use with Hot Tubs, Spas and Swim Spas. Most commonly used on Swim Spas but also can be installed on very large spas that have a main 3kw Balboa control box, these heaters are then installed in-line adding an additional 3kw of heating to the system.
The following items are included with this complete Balboa 58133 spa auxiliary slave heater
- 2x 2-inch heater gaskets
- 2x 2-inch plumbing union tailpieces
- Power cable to master control box PCB.
Balboa Heater Overview
- The heater can be connected to any GS or GL 3kw Balboa control boxes such as Balboa GS500Z, GS501Z, GS510SZ, GS501SZ, GS510DZ, GS520DZ, GS523DZ, GL2000 & GL2001.
- Slave heater has a built-in hi-limit sensor and the Master Balboa spa control box is used for power and flow detection
- Found on many swim spas and large spas that hold a large volume of water.
Balboa Heater Specifications
- Manufacturer - Balboa Water Group
- Part Number - 58133
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3.0kW
- Element Material - Incoloy 800
- Flow Detection - Master Spa pack
- Sensor Type - Built-in Hi-limit sensor
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female socket (60mm ID)
- Length: 380mm,
- Length Inc Union Tails: 495mm,
- Tube Diameter: 60mm
- Distance of Terminals: 31.75mm
Heater Fitting & Removal Guide
This auxiliary slave Balboa heater is easily replaced by loosening the two heater union collars by hand or with an oil filter wrench. Union collars can be removed completely and split in two if needed to gain further access by unscrewing the two screws from the collar. Remove the cover from the main Master spa control box and remove the two power spade connections on the PCB. Unscrew the aux slave heater box feet mounting screws and remove the heater, install the new heater as you previously removed.
