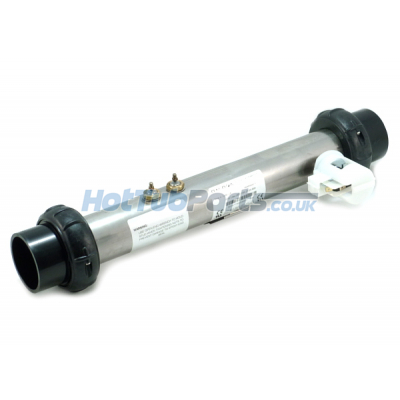

Balboa 5.5kw Heater With Pressure Switch - 58027
Official high-quality replacement 5.5kW Balboa spa heater with pressure switch used specifically on hot tubs and spas. This particular pressure switched model can only be found and fitted to Balboa spa control systems that have the old style metal control boxes.
The following items are included with this complete Balboa 58027 spa heater assembly:
- 2x 2-inch heater gaskets
- Balboa/Teckmark 2 PSI pressure switch
- 2x 2-inch plumbing union tailpieces
Balboa Heater Overview
- Heater can be fitted to control boxes such as Balboa Lite Leader, Spaform SF50 & the M1 TUV.
- A metal pouch is located on one side to secure the hi-limit temperature probe in place, Pre-M7 sensors are used.
- Supplied pressure switch is used to determine how much flow is passing through the heater tube and prevents heater failure.
- Found on older spa models from brands such as Spaform, Leisureite, Canadian Spa, Hydropool Hot Tubs, Freedom Spas, Beachcomber, Hydrospa and many others.
Balboa Heater Specifications
- Manufacturer - Balboa Water Group
- Part Number - 58027 (replaces many other old part numbers)
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 5.5kw
- Element Material - Incoloy
- Flow Detection - 2 PSI Balboa pressure switch
- Sensor Type - Old Pre-M7 with separate temperature & Hi-Limit probes
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female socket (60mm ID)
- Length: 380mm,
- Length Inc Union Tails: 495mm,
- Diameter: 60mm
- Distance of Terminals: 31.75mm
Heater Fitting & Removal Guide
This pressure switched Balboa heater is usually mounted on the rear or the bottom of the spa control box, remove the spa control box from the hot tub. Do this by undoing the two large plumbing union collars. Disconnect the pressure switch spade connectors from the pressure switch and then inside the control box remove the 2x 3/8 nuts that secure the two power cables onto the heater terminals. Flip the control box on its face or rear and undo the 4x green bolts that hold the fixing brackets in place. Once removed the heater will come away from the control box and you will now be able to fit the new heater in the same order as you removed the old one.
Take care when tightening the two heater power wires onto the new heater terminals, use a 1/4 inch spanner and hold the base of the terminal whilst tightening the 3/8 inch nuts up to prevent the terminals being twisted. New gaskets are supplied with the new heater so replace and fit these to your heater union connections.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
