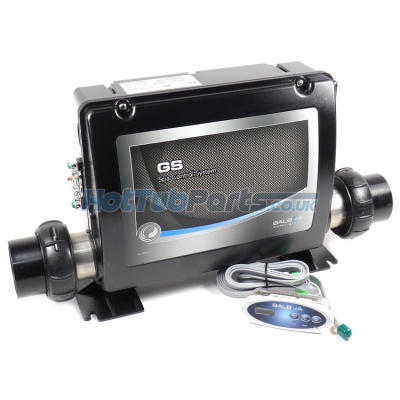

Balboa Bundle - GS501Z 3kw & VL200 4 Button Topside Control
This Balboa GS501Z spa control box bundle benefits from having a 3kw heater and a compact VL200 touch panel which is ideal for fitting into small spaces in the spa shell. The GS501Z control box will operate a two-pump hot tub system and is also ideal for upgrading a Chinese spa control system or updating an old unserviceable one that parts are unable to obtain. Due to this system having a 3kw heater, you will need to have a 16 amp minimum supply to it from your home consumer unit so you may need an electrician to wire this for you if you don't already have this installed.
This bundle can operate:
- Pump 1 - Two Speed (One speed if using circulation pump)
- Pump 2 or Air Blower - One Speed
- Circulation pump - Optional
- 12 Volt light (on/off)
- 3kw M7 heater
- Ozonator
This bundle contains:
- GS501Z control box with 3kw M7 heater assembly.
- Small 4 button oval VL200 topside touch control pad which has buttons: BLOWER, JETS, TEMP, LIGHT.
- Topside control panel dimensions, Length:110mm x Width: 40mm.
Balboa's M7 Technology
The latest Balboa GS & GL control boxes all come with M7 technology, so you don't need to integrate external temperature sensors into the spa or pressure switches to determine water flow. In this technology, two M7 sensors are employed, one at each end of the heater assembly, which provide a superior method to detect water flow and temperature at the same time.
Need Help?
We have been replacing spa control systems for many years so we know what replaces what so if you are unsure which one to use just email us through our contact us page with images of the current setup, we will be more than happy to help you.
