New Balboa Circulation Pump
Genuine replacement new European Balboa circulation pump designed specifically for use with hot tubs and spas. This is the newest Balboa circulation pump for 2019 designed to run 24 hours a day, 7 days a week with its economical 1-speed 1/4hp motor. Modern Balboa/HydroAir pump motors designed for the European market that are compact and silent running.

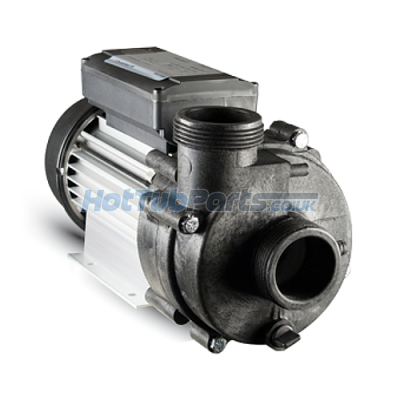

Note: Picture one is the 2018 model and the new 2019 model has a slightly different motor shown in image 2.
Balboa Circulation Pump Overview
- Balboa circ pump wet end connects to 1.5-inch plumbing unions on the inlet and outlet. Both connections have a 63mm outside thread diameter and 1.5" O'rings are used to seal the plumbing union connections.
- Wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the HydroAir motor to the Balboa wet end.
- Wiring - This complete Balboa circulation pump is supplied with a new cable and AMP plug but you may need to swap over from your old existing pump if this is different. You will have three wires, live for the high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.
Pump Specifications
- Manufacturer - Balboa Water Group
- Model - Economic Circ Pump
- Part Number - 1031025
- Type of Product - Spa Circulation Pump
- Number of Speeds - 1 Speed
- Pump Frame Size - 48 Frame
- Horse Power - 1/4 (0.25)
- Amps Low/High - 0.8
- RPM Low/High - 1400
- Hz - 50
- Dimensions (MM) - Length: 345, Height: 177, Width: 160
We Are Here To Help!
It can be a bit confusing choosing your new Hot Tub circulation pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the pump you are replacing though our Contact us page and let us do the work for you.
