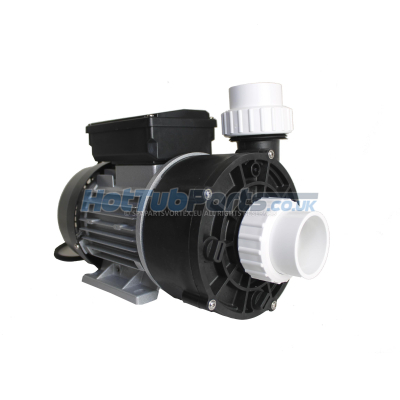

Blue Whale LX WTC120 Pump 1.2HP (Storm Force 7)
Complete Chinese WTC120 LX pump also known as Storm Force 7 on Blue Whale Spas with a 1.2hp single high-speed motor designed specifically for use with Hot Tubs & Spas as a jet pump. Our stock of the WTC120 LX pump has the latest upgraded ceramic/Viton shaft seal kits within the wet end as previous models suffered from premature seal failure.
Side Discharge - This means that the inlet and outlet plumbing union connections are offset from each other, rather than being inline.
These types of pumps can be found in countless Blue Whale hot tubs and spas.
WTC120 LX Pump Overview
- This is a 1-speed jet pump so the single high speed is for the jets.
- The pump wet end connects to 1.5-inch plumbing unions on the inlet and outlet. Both connections have a 63mm outside thread diameter and you can use 1.5-inch union O'rings to seal the plumbing union connections.
- The pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the wet end to the motor.
- Wiring - This replacement WTC120 LX Spa pump is supplied with a new cable but you may need to swap the cable over from your old existing LX pump as control box connection type does vary between spa brands. You will have three wires, live for the single high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new spa pump then see related products.
- Supplied with an air switch on the electrical box but can disregard if unneeded.
WTC120 Pump Specifications
- Manufacturer - LX Pump Co.
- Part Number - LX WTC120
- Model - WTC Series
- Type of Product - Hot Tub & Spa jet or booster pump
- Number of Speeds - 1 (low speed)
- Horse Power - 1.2HP
- Amps Low/High - 4.6
- RPM Low/High - 2900
- Hz - 50
- Dimensions (MM) - Length: 290, Height: 200, Width: 160
We Are Here To Help!
It can be a bit confusing choosing your new replacement pump as models are not always written on them. The quickest way is to simply send us some images of the LX pump you are replacing though our Contact us page and let us do the work for you.
