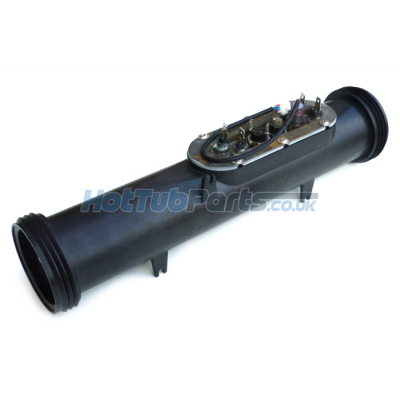

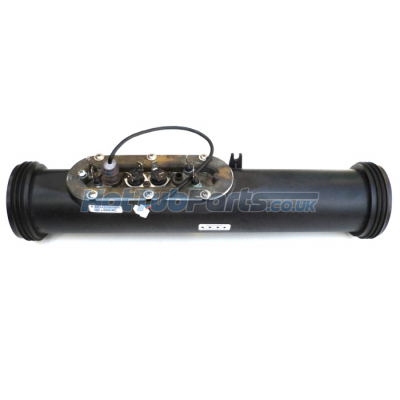

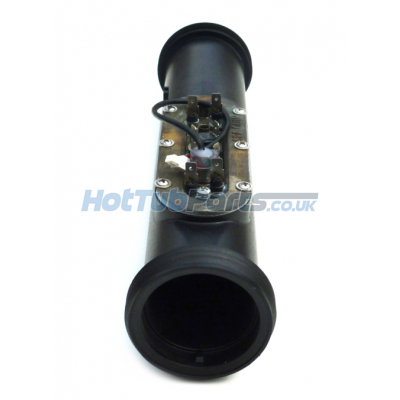

Davey Spa Power 2.0kW SP600/SP601/SP800 Heater
Official high-quality replacement 2.0kW Davey Spa Power SP600, SP601 & SP800 Heater 15146-20SP used specifically on hot tubs and spas. Manufactured in New Zealand, Davey's unique black plastic spa heater with built-in temperature/thermal overload sensor and optical water sensor. This 2.0kw heater is used with all the distinctive yellow SP600, SP601 & SP800 Spa Power spa control systems by Davey/SpaQuip.
This 2kW version is by far the most common heater found on Spa Power controls.
Davey/SpaQuip Heater Overview
- This heater is used specifically with Spa Power SP600/SP601/SP800 spa control boxes only.

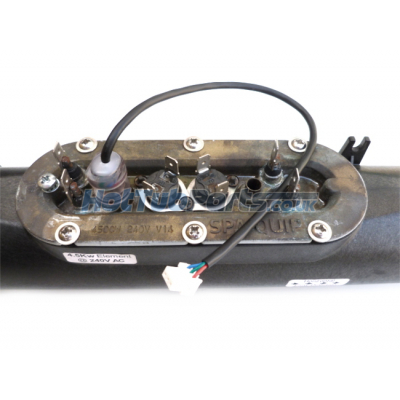

- Patented Davey in-built temperature sensor, hi-limit overload sensor and optical water sensor used to monitor water flow through the heater and prevent premature heater failure.
- Found on many spa brands such as Roto Spas, Monarch Spas and Sapphire Spas.
- This heater is also available in a 1.5kW & 3.0kW version.
Davey/SpaQuip Heater Specifications
- Manufacturer - Davey/SpaQuip
- Part Number - 15146-20SP
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 2.0kW
- Element Material - Incoloy
- Flow Detection - In-built flow sensor
- Sensors Type - temp, hi-limit and flow
- Pipework Connection Size - 2 Inch male (78mm OD)
- Length: 350mm
Heater Fitting & Removal Guide
This SP600, SP601, SP800 2kW heater is very easy to replace. Either drain the spa down or if the water in the heater can be isolated by gate valves either side of the heater then do this. Unthread the female heater plumbing union collars from each side of the heater and then remove the Spa Power control box lid. Unplug the water sensor wire and the heater power terminal connections. The heater is secured within the control box by only a couple of round-headed screws above and below the heater, remove these and the heater can be easily removed. Install the new heater in the same way you removed the old one.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
