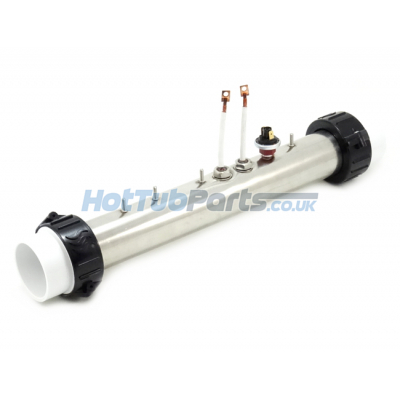

Gecko 3kw HEAT.WAV SSPA Heater (New Version)
Official high-quality replacement Gecko 3kW HEAT.WAV SSPA heater 9920-100342 used specifically on hot tubs and spas. This particular 3kw heater assembly is used on the later Gecko S-Class SSPA-1 spa control boxes and comes with pre-wired terminal cables & ring terminals to connect directly to the SSPA printed circuit boards. This heater also includes Gecko's DTEC 2PSI pressure switch.
The following items are included with this complete Gecko spa heater assembly 9920-100342:
- 2x 2-inch heater gaskets
- 2x 2-inch split union nut collars
- 4x Mounting stud and 3/8" fixing nut
- 1x DTEC pressure switch
- Pre-wired heater terminal cables
Gecko Heater Overview
- Heater can only be fitted to later versions of Gecko SSPA control boxes.
- Hi-Limit sensor ribbon from PCB is secured on the top of the heater tube within the control box.
- Supplied with pressure switch is used to determine how much flow is passing through the heater tube and prevents heater failure.
- Found on older spa models from brands such as Hotspot, LA Spas, Sierra Spas, Southwest Spas, Sunrise Spas, Artesian Spas, Gulf Coast & Coyote Spas.
Heater Specifications
- Manufacturer - Gecko Alliance
- Part Number - 9920-100342
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3kW
- Element Material - Incoloy
- Flow Detection - Gecko Dtec Pressure Switch
- Sensor Type - Separate Hi-Limit ribbon and temperature
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch male (78mm OD)
- Length: 380mm,
- Length Inc Unions: 495mm
- Tube Diameter: 60mm
- Distance of Terminals: 31.75mm
Heater Fitting & Removal Guide
Loosen the two heater union collars by hand or with a wrench and if necessary the collars can be split into two and removed completely by unscrewing the two screws on the collar. Remove the chassis earthing copper cable from the heater tube and gently the Hi-Limit sensor ribbon from the pouch on the top of the heater. Take the lid off of the SSPA spa control box and disconnect the two spade connectors from the pressure switch. Unscrew the two heater terminal power cables from the printed circuit board. Undo the four 3/8" nuts from the heater to control box mounting studs. Remove the heater completely and reinstall in the same order. New gaskets are supplied with the new heater so replace and fit these to your heater union connections.
