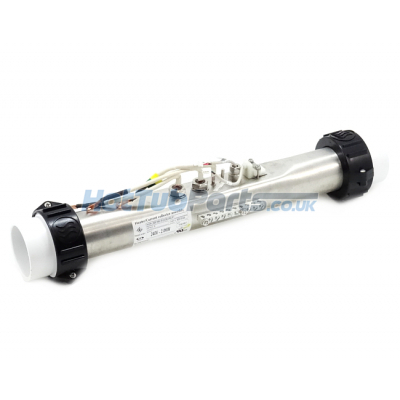

Gecko AeWare 3kW IN.XE & IN.YE HEAT.WAV Heater
Official high-quality replacement 3.0kW Gecko AeWare HEAT.WAV heater used specifically on hot tubs and spas. Gecko's AeWare innovative HEAT.WAV heater with built-in temperature and flow sensor used with all Gecko Aeware IN.XE & IN.YE spa control systems. This 3kw version is usually found on Hydropool IN.XE Spa controls.
The following items are included with this complete Gecko AeWare spa heater assembly:
- 2x 2-inch heater gaskets
- 2x 2-inch heater unions
- In-built temp, hi-limit and flow sensors
- Pre-wired earth and heater terminals for simple control box connection
Gecko AeWare Heater Overview
- This heater is used specifically with Gecko AeWare IN.XE & IN.YE spa control boxes only.
- Patented Gecko in-built temperature sensor, hi-limit sensor and flow sensor.
- Found on many spa brands such as Hydropool, Gulf Coast, Arctic Spas, Garden Leisure and many more.
- This heater is also available in 2kW & 4kW versions.
AeWare Heater Specifications
- Manufacturer - Gecko Alliance
- Part Number - 9920-101458
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3.0kW
- Element Material - Incoloy
- Flow Detection - In-built flow sensor
- Sensors Type - temp, hi-limit and flow
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch male (78mm OD)
- Length: 380mm,
- Length Inc Union Tails: 495mm,
- Diameter: 60mm
- Distance of Terminals: 31.75mm
Heater Fitting & Removal Guide
This is based on removal from the IN.XE control box. Remove the 8 screws from the panel just above the heater and this will gain access to the electrical connections for the heater terminals and the sensors. Using a Philips screwdriver undo the three screws for the earth and two live heater terminal wires, then unplug the sensors from the control box. Remove the blue plastic heater tube covering and any chassis earth connections made to the heater tube and move to one side. Loosen the two heater union collars by hand or with a wrench and if necessary the collars can be split into two and removed completely by unscrewing the two screws on the collar. Remove the heater completely and reinstall in the same order. New gaskets are supplied with the new heater so replace and fit these to your heater union connections.
