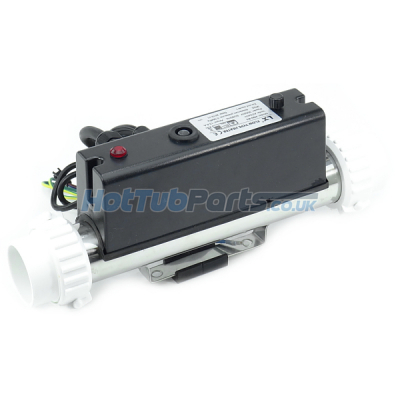

LX R-H30-R1 3kW Heater (2" Fittings)

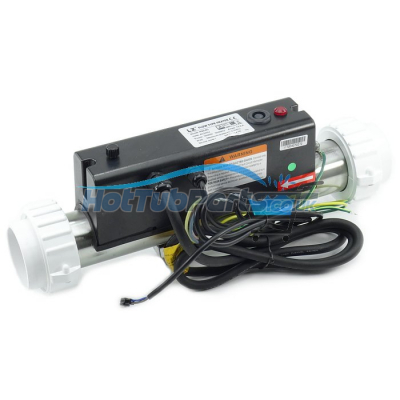

Genuine replacement Chinese LX R-H30-R1 3.0kW heater assembly with pressure switch cable specifically for use with Hot Tubs & Spas. This LX R-H30-R1 heater has the larger 2-inch plumbing union connections and can be found on a huge number of Chinese manufactured hot tubs since 2005. This heater is also available with the smaller 1.5-inch plumbing connections.
The following items are included with this complete LX R-H30-R1 spa heater assembly:
- 2x 2-inch heater gaskets
- 2x 2-inch plumbing union tailpieces
- 3-core power cord
- Pressure switch cable with 2 pin connector
- Bottom mounting bracket with rubber foot
LX Heater Overview
- This heater can be fitted to Chinese Spa control boxes such as E-Think GD7005, KL8-2 and KL8-3.
- Includes pressure switch cable with 2-pin connector to plug into Chinese control boxes, used to monitor back pressure within the heater to prevent dry firing and premature heater failure.
- Built-in Hi-Limit thermal safety cut out to prevent overheating.
- The power cable is pre-wired with ring terminals for simple control box PCB installation.
- Found on older spa models from brands such as Danz Spas, Spa Serve, Monalisa, Trinity, Cascade Spas & AMC Winer Hot Tubs.
LX Heater Specifications
- Manufacturer - LX
- Part Number - R-H30-R1
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3.0kw
- Element Material - Incoloy
- Flow Detection - Built-in pressure switch
- Sensor Type - Built-in Hi-Limit thermal safety cut out
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female socket (60mm ID)
- Length Inc Union Tails: 395mm
- Diameter: 63mm
- Height: 125mm
Heater Fitting & Removal Guide
This Chinese LX R-H30-R1 remote heater is very easy to install. Remove the old one by first turning the power off to the spa and removing the front cover of the main spa control box. Unscrew the power cable connections from the PCB and remove the cable from the control box completely along with the pressure switch cable. Go to the heater and either by hand or with an oil filter wrench unthread the heater plumbing union collars either side of the heater assembly. You can remove these collars completely if more access is needed to remove the heater by unscrewing the two screws on each collar. The heater will have a small earth chassis cable going to it so remove this from the heater, no remove the heater completely and reinstall your new replacement in the same order as it was removed. New gaskets are supplied with the new heater so install these into the existing plumbing unions when you reinstall.
