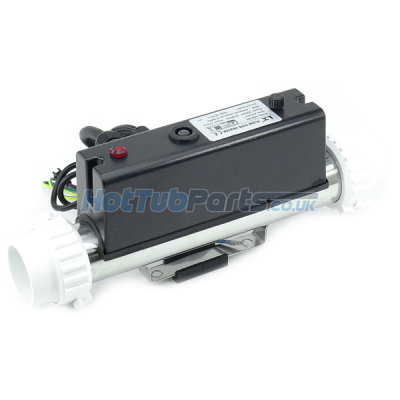

LX R-H30-R1 3kW Heater, No P/Switch Cable (2" Fittings)
Genuine replacement Chinese LX R-H30-R1 3.0kW heater assembly without pressure switch cable specifically for use with Hot Tubs & Spas. This LX R-H30-R1 heater has the larger 2-inch plumbing union connections and can be found on a huge number of Chinese manufactured hot tubs since 2005. This heater is also available with the smaller 1.5-inch connections.
The following items are included with this complete LX R-H30-R1 spa heater assembly:
- 2x 2-inch heater gaskets
- 2x 2-inch plumbing union tailpieces
- 3-core power cord
- Bottom mounting bracket with rubber foot
LX Heater Overview
- This heater can be fitted to Chinese Spa control boxes such as E-Think GD7005, KL8-2 and KL8-3.
- Built-in Hi-Limit thermal safety cut out to prevent overheating.
- The power cable is pre-wired with ring terminals for simple control box PCB installation.
- Found on older spa models from brands such as Danz Spas, Spa Serve, Monalisa, Trinity, Cascade Spas & AMC Winer Hot Tubs.
LX Heater Specifications
- Manufacturer - LX
- Part Number - R-H30-R1
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 3.0kw
- Element Material - Incoloy
- Flow Detection - None
- Sensor Type - Built-in Hi-Limit thermal safety cut out
- Plumbing Union Size - 2 inches (78mm thread OD)
- Pipework Connection Size - 2 Inch female socket (60mm ID)
- Length Inc Union Tails: 395mm
- Tube Diameter: 63mm
- Height: 125mm
Heater Fitting & Removal Guide
This Chinese LX R-H30-R1 remote heater is very easy to install. Remove the old one by first turning the power off to the spa and removing the front cover of the main spa control box. Unscrew the power cable connections from the PCB and remove the cable from the control box completely. Go to the heater and either by hand or with an oil filter wrench unthread the heater plumbing union collars either side of the heater assembly. You can remove these collars completely if more access is needed to remove the heater by unscrewing the two screws on each collar. The heater will have a small earth chassis cable going to it so remove this from the heater, no remove the heater completely and reinstall your new replacement in the same order as it was removed. New gaskets are supplied with the new heater so install these into the existing plumbing unions when you reinstall.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
