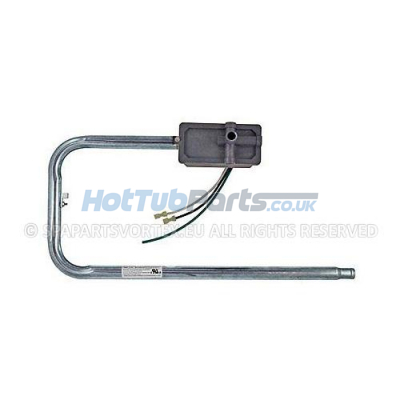

Sundance/Jacuzzi Spas 2.7kW Low Flo Heater 6500-401
Genuine replacement 2.7kW low flow spa heater assembly 6500-401 used on many Sundance & Jacuzzi spas & hot tubs since 2002. Very distinctive square back style type of low flow spa heater found on Sundance/Jacuzzi models that have the circulation pump option. This 2.7kw model is mounted onto the back of the spas control box and power cable enters directly through the back of the box.
Sundance Spa Heater Overview
- This 6500-401 Smart heater is used specifically with Sundance/Jacuzzi spa control boxes.
- 3/4" Vinyl pipe Inlet and outlet connections.
- A Laing E10 with 3/4 inch smooth barbed connections is used with this heater.
- Found on many spa models from Sundance Spas & Jacuzzi such as J200, J300, 780 Hamilton, Chelsee, Certa Models, Bahia, Palermo & Cayman.
Laing Heater Specifications
- Manufacturer - Sundance
- Part Number - 6500-401
- Type of Product - Spa or Hot Tub heater assembly
- Kilowatt Rating - 2.7kW
- Element Material - Titanium
- Flow Detection - External Flow Switch
- Sensors Type - External Hi-Limit and Temp
- Pipework Connection Size - 25mm for 3/4 Vinyl pipe
- Length - 295mm
- Width - 107mm
Heater Fitting & Removal Guide
Drain the spa down, disconnect the heater power cables from the spa control box PCB and unthread the power cable gland on the inside of the control box. Slide back the spring clamps that secure the 3/4 inch vinyl pipe onto the inlet and outlet of the old heater. Heat the vinyl pipe at the heater connections and slide the pipes off. Remove the old heater completely from the spa by unclipping the grey clamps along the top of the control box and pulling the power cables out from the rear of the box. Reinstall the new one the same as you removed. A key point to aid a good tight water seal of the 3/4 inch plumbing connections is to make sure they are heated up when you pop them back on the new heater, whilst hot install the spring clamps and secure in place.
We Are Here To Help!
It can be a bit confusing choosing your new spa heater as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete spa heater assembly you need the replacement for through our Contact us page and let us do the work for you.
