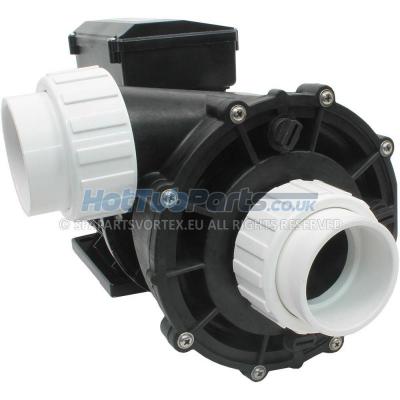

Sundance Spa LP200 Pump - 2hp 1 Speed (9:00 o'clock)
Complete new Sundance LP200 LX pump with 2hp single speed 48 frame sized motor designed specifically for use with Sundance Hot Tubs & Spas. These LX spa pumps have a unique motor mounting bracket that allows the wet end to be rotated from the standard 12, 3 & 9 o'clock positions to the unique 1:30 & 7:30 o'clock positions found only on Sundance Spas.
This pump is shipped in the 9:00 o'clock position ready for easy & quick installation to your spa or hot tub. Can be found on a range of Sundance spa models including Maxxus, Altamar, Cameo, Caprio, Bahia, Burlington, Optima, Palermo & Marin.
Our stock of the Sundance LP200 LX pump has the latest upgraded ceramic/Viton shaft seal kits within the wet end as previous models suffered from premature seal failure.
Sundance LP200 Pump Overview
- This is a 1-speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub.
- Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Wiring - This replacement Sundance LP200 LX Spa pump is supplied with a new cable but you may need to swap the cable over from your old existing LX pump as control box connection type does vary between spa brands. You will have three wires, live for the high speed (Red, Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new spa pump then see related products.
Sundance Spa Pump Specifications
- Manufacturer - LX Pump Co/Sundance Spas/Jacuzzi
- Part Number - Sundance 6500-239
- Type of Product - Hot Tub/Spa Pump
- Number of Speeds - 1 (high speed)
- Motor & Wet End Frame Size - 48 Frame
- Horse Power - Motor 2HP, 2HP rated wet end
- Amps Low/High - N/A/7.0
- KW Low/High - N/A/1.5
- RPM Low/High - N/A/2900
- Hz - 50
- Dimensions (MM) - Length: 400, Height: 205, Width: 205
