Sundance Spa WP200 Pump - 2HP 2 Speed (7:30 O'clock)

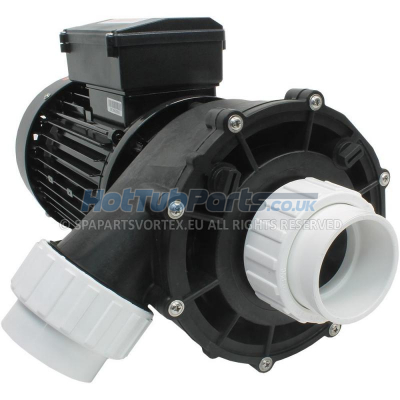

Complete new Sundance WP200 LX pump with 2hp two speed 56 frame sized motor designed specifically for use with Sundance Hot Tubs & Spas. These LX spa pumps have a unique motor mounting bracket that allows the wet end to be rotated from the standard 12, 3 & 9 o'clock positions to the unique 1:30 & 7:30 o'clock positions found only on Sundance Spas.
This pump is shipped in the 7:30 o'clock position ready for easy & quick installation to your spa or hot tub. Can be found on a range of Sundance spa models including Metro & Burlington.
Our stock of the Sundance WP200 LX pump has the latest upgraded ceramic/Viton shaft seal kits within the wet end as previous models suffered from premature seal failure.
Sundance WP200 Pump Overview
- This is a 2-speed pump so the high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub. The low speed is used to heat and filter the spa's water.
- Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Wiring - This replacement WP200 Spa pump is supplied with a new cable but you may need to swap the cable over from your old existing Sundance pump as a control box connection type does vary between spa models. You will have four wires, two of them are live for high and low speeds (Red, Brown or Black) so make a note when installing. Neutral (Blue or White) and Earth (Green). If you need a new cable for your new hot tub pump then see related products.
Sundance Spa Pump Specifications
- Manufacturer - LX Pump Co/Sundance/Jacuzzi
- Part Number - 6500-319
- Type of Product - Hot Tub/Spa Pump
- Number of Speeds - 2 (Low & high speed)
- Motor & Wet End Frame Size - 56 Frame
- Horse Power - Motor 2HP, 2HP rated wet end
- Amps Low/High - 2.4/7.0
- KW Low/High - 0.35/1.5
- RPM Low/High - 1450/2900
- Hz - 50
- Dimensions (MM) - Length: 435, Height: 235, Width: 205
We Are Here To Help!
It can be a bit confusing choosing your new replacement Sundance pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the pump you are replacing through our Contact us page and let us do the work for
