Waterway Tiny Might Circulation Pump (1x1)

3 item(s)
HTP233
-8%
£207.65
(£173.04 Ex. VAT)
RRP ex VAT: £187.38
Manufacturer: Waterway Plastics
+

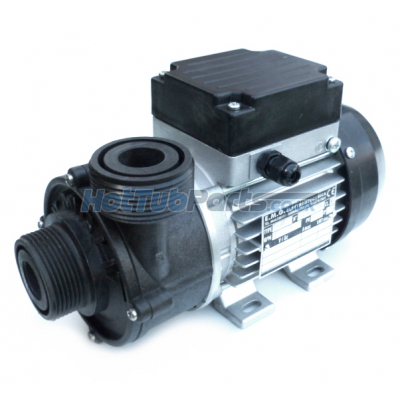

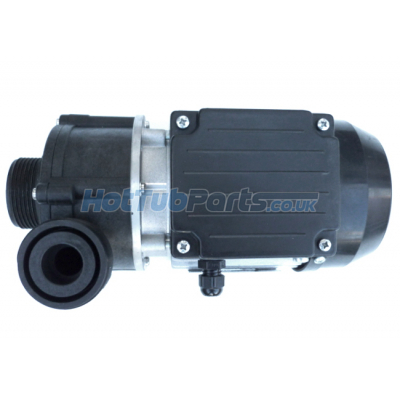

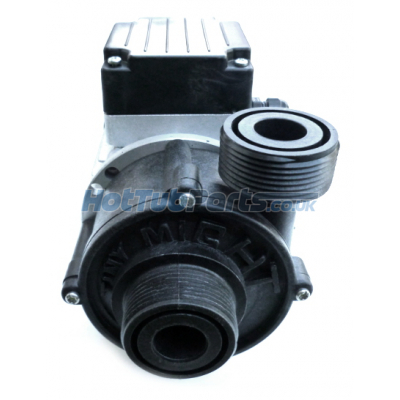

Waterway Tiny Might Circulation Pump

Genuine replacement European Waterway Tiny Might circulation pump designed specifically for use with hot tubs and spas. The Waterway 'Tiny Might' is designed to run 24 hours a day, 7 days a week with its economical 1-speed 1/16hp EMG motor. EMG motors are designed for the European market with their rear cooling fan that blows ambient air from the rear of the motor when running through external cooling fins on the side of the motor.

This modern Tiny Might replaces the unreliable USA smooth body Grundfos pump with the distinctive red motor. Please ensure this pump has ventilation as temperatures above 45 degrees will cause this pump to fail prematurely.

This exact circulation pump can be found fitted to spa brands such as Sierra Spas, Southwest Spas, Coast Mountain, old Canadian Spas and others.

Waterway Tiny Might Pump Overview

  • Tiny Might pump wet end connects to 1-inch plumbing unions on the inlet and outlet. Both connections have a 50mm outside thread diameter.
  • Wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the EMG motor to the Waterway wet end.
  • Wiring - This complete Waterway Tiny Might circulation pump is NOT supplied with a new cable so you will need to swap over from your old existing pump. You will have three wires, live for the high speed (Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new pump then see related products.

Pump Specifications

  • Manufacturer - Waterway Plastics
  • Model - Tiny Might
  • Part Number - 3312620-14EU
  • Type of Product - Spa Circulation Pump
  • Number of Speeds - 1 Speed
  • Pump Frame Size - 63 Frame
  • Horse Power - 0.28
  • Amps Low/High - 1.1
  • KW Low/High - 0.2
  • RPM Low/High - 2900
  • Hz - 50
  • Dimensions (MM) - Length: 250, Height: 150, Width: 120



We Are Here To Help!

It can be a bit confusing choosing your new Hot Tub circulation pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the pump you are replacing though our Contact us page and let us do the work for you.

Manufacturer:
Waterway Plastics
Product Type:
Hot Tub Circulation Pump
Part Number(s):
3312620-14EU
Frame Size:
63
No. of Speeds:
1 Speed
Motor HP:
1/16
Union Connection:
1.5" x 1.5" (63mm Thread OD)
Amps Low/High:
1.1
KW Low/High:
0.2
RPM Low/High:
2900
Volts/Hz:
230V/50Hz
Length (MM):
250
Width (MM):
120
Height (MM):
150
