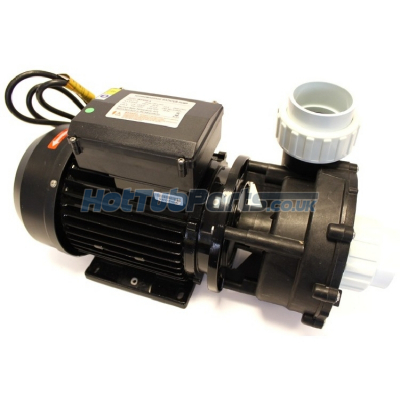

WP400 LX Spa Pump - 4hp 1 Speed (2"x2")
Complete Chinese WP400 LX pump with 4hp single speed 56 frame sized motor designed specifically for use with Hot Tubs & Spas. Our stock of the WP400 LX pump has the latest upgraded ceramic/viton shaft seal kits within the wet end as previous models suffered from premature seal failure.
This WP400 LX pump can be used to replace other brands of spa pump such as Waterway, HydroAir and Aqua-flo. The wet ends on these WP400 LX pumps are almost identical to the Aqua-flo XP2e and can be used as a cheaper direct replacement. A few years ago we would have said it would not be worth replacing an American spa pump with a WP400 LX pump but now they have the upgraded seal kits they are a good alternative.
WP400 LX Pump Overview
- This is a 1-speed pump so the single high speed is used for JETS or Boost operation when bathing in your Spa or Hot Tub.
- Pump wet end connects to 2-inch plumbing unions on the inlet and outlet. Both connections have a 78mm outside thread diameter and you can use 2 inch flat gaskets to seal the connections.
- Pump wet end can be rotated from the standard 12 O'clock position to 3 O'clock or 9 O'clock position easily by removing the four bolts that attach the wet end to the motor.
- Wiring - This replacement WP400 LX Spa pump is supplied with a new cable but you may need to swap the cable over from your old existing LX pump as control box connection type does vary between spa brands. You will have three wires, live for the high speed (Red, Brown or Black). Neutral (Blue or White) and Earth (Green). If you need a new cable for your new spa pump then see related products.
LX Spa Pump Specifications
- Manufacturer - LX Pump Co.
- Part Number - LX-WP400
- Type of Product - Hot Tub/Spa Pump
- Number of Speeds - 1 (high speed)
- Motor & Wet End Frame Size - 56 Frame
- Horse Power - Motor 4HP, 5HP rated wet end
- Amps Low/High - N/A/12
- KW Low/High - N/A/3.0
- RPM Low/High - N/A/2900
- Hz - 50
- Dimensions (MM) - Length: 435, Height: 235, Width: 205
We Are Here To Help!
It can be a bit confusing choosing your new replacement pump as brand names and models are not always written on them. The quickest way is to simply send us some images of the Spa pump you are replacing through our Contact us page and let us do the work for you.
