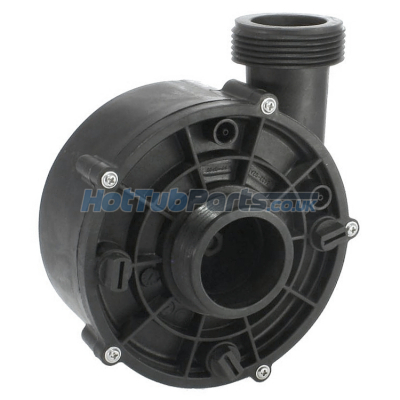

WTC50M LX Circulation Pump Wet End
Complete replacement Chinese LX WTC50M Spa circulation pump wet end with 1/2hp rated internal impeller and designed specifically for use with Hot Tubs and Spas. LX wet ends are unique to each model of LX spa pump so if you have a WTC50M circulation pump this wet end this is the only replacement for it, order with confidence.
Upgraded Seals! All our replacement Chinese LX pump wet ends have the latest upgraded ceramic Viton shaft seal kits installed so life expectancy of a complete pump is massively increased.
This upgraded WTC50M LX circulation pump wet end has been used by many hot tub brands over the years, American & Chinese spa manufacturers such as Premier Hot Tubs.
This is a complete WTC50M wet end so just bolts straight onto your motor and includes the following items:
- Impeller - 1/2hp
- Faceplate
- Housing (Rear Volute)
- NEW: Ceramic mechanical shaft seal
- All associated internal O' Rings
Pump Wet End Overview
- Wet End Rotation - All pump wet ends can be installed onto pump motors in three positions, 12 O'clock, 3 O'clock or 9 O'clock easily so that they can attach to your spas plumbing unions.
- Side Discharge - This means the inlet (suction) and outlet (Discharge) are offset from one another. When you look directly at the face of the wet end you will see that the outlet is positioned off to one side in comparison to the inlet regardless if the wet end has been rotated.
- Fitment - Wet end is attached by four long bolts that run down the side of the motor, from the front to the back. These bolts can be unbolted at the rear of the LX pump motor.
- Frame Size - Chinese LX pumps do not go by the standard industry frame sizes so they are unique to each model.
Pump Wet End Specifications
- Manufacturer - LX Pump Co.
- Part Number - B450-06
- Type of Product - Spa Pump Wet End
- Wet End Type - Centre Discharge
- Wet End Horse Power - 0.5HP
- Union Size (Inlet) - 1.5 inches (63mm Thread OD)
- Union Size (Outlet) - 1.5 inches (63mm Thread OD)
- Dimensions (MM) - Height: 175, Width: 155, Length: 125
We Are Here To Help!
It can be a bit confusing choosing your new pump wet end as brand names and models are not always written on them. The quickest way is to simply send us some images of the complete hot tub pump you need the replacement wet end for through our Contact us page and let us do the work for you.
