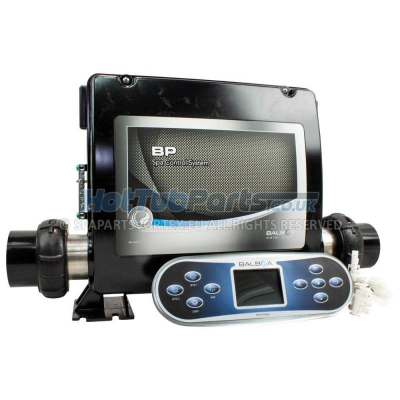

Balboa Bundle - BP2100G1 3kw & TP700 9 Button Topside

Balboa Bundle - BP2100G1 3kw & TP700 9 Button Topside Control

Balboa's BP series systems are the most technologically advanced spa control systems ever manufactured, affordable, and super reliable.

Our Balboa BP2100G1 spa control box bundle benefits from having wifi capability, a 3kw heater, and a high-quality long oval TP700 touch panel which is ideal for fitting over spa shell holes from other removed panels due to its size. The BP2100 control box itself depending on the setup it's configured in can be configured to run up to 2 jet pumps plus an air blower or pump 3 so making it a 3 pump system. The BP2100 system can also be expanded to run an additional 4th jet pump but requires this splitter cable to be installed which is sold separately.

This Balboa bundle can be retro-fitted to nearly all spas and used for upgrading from a Chinese spa control system or updating an old unserviceable one where parts are unobtainable. Due to this system having a 3kw heater and being able to run this many electrical components, you will need to have a 32 amp supply to it from your home consumer unit so you may need an electrician to wire this for you if you don't already have this installed.

This Bundle Can Operate:

• Pump 1 - One Speed or Two Speed (Plus additional Circ pump if required)
• Pump 2 - One Speed or Two Speed
• Pump 3 - One Speed or Two Speed (One speed if blower used)
• Pump 4 - One Speed (Only with splitter cable installed)
• Air Blower - One Speed
• Circulation pump - Optional
• 12 Volt light (on/off)
• 3kw M7 heater
• Ozonator
• Wifi Capability (Wifi module required)

This Bundle Contains:

• BP2100G1 Wifi ready control box with 3kw M7 heater assembly.
• Free Amp cable pack to convert all your electrical components (unlike other companies).
• Hightech LCD 9 button long oval TP700 topside touch control pad which has buttons: JETS1, JETS2, AUX, LIGHT, UP, DOWN, LEFT, RIGHT, SELECT.
• Topside control panel dimensions, Length: 250mm x Width: 90mm.

WIFI Capability

All Balboa's BP series systems are all WIFI ready and all you need to do to benefit from this functionality is to buy is a Wifi Receiver Module. Connect the wifi module up to your BP series control box and download the Balboa Worldwide APP which is available for Android and IOS devices. The BWA App allows you to access your hot tub via a direct connection anywhere in the local proximity of your tub, anywhere in your house that you can connect to your local WiFi network, or anywhere in the world you have an internet connection to your smart device via 3G, 4G, or WiFi hot spots. Allowing you to control your spas filtration, heat settings, and electrical components remotely via a smartphone or tablet.

Balboa's M7 Technology

The latest Balboa BP series control boxes all come with M7 technology, so you don't need to integrate external temperature sensors into the spa or pressure switches to determine water flow. In this technology, two M7 sensors are employed, one at each end of the heater assembly, which provide a superior method to detect water flow and temperature at the same time.

BP2100G1 & TP800 Configuration

The BP2100 control boxes are all shipped in setup number 1, you may need to change the setup number to configure the box to your spas electrical components such as circulation pump operation, number of pumps etc. Changing the setup is relatively easy, with the mains power off to the control box locate the small switch bank located on the internal PCB and move dipswitch No1 to the on position. This put the system into test mode, use the following guide below to change the setup number through the TP800 touch panel to the desired setting. We have also included the TP800 operation manual, wifi module setup, and other useful info.

• Balboa BP2100 Tech Sheet
• Wifi 123 Easy Installation Guide
• BWA App User Guide
• BWA Welcome Guide
• TP800/TP900 User Manual

Need Help?

We have been replacing spa control systems for many years so we know what replaces what so if you are unsure which one to use just email us through our contact us page with images of the current setup, we will be more than happy to help you.
